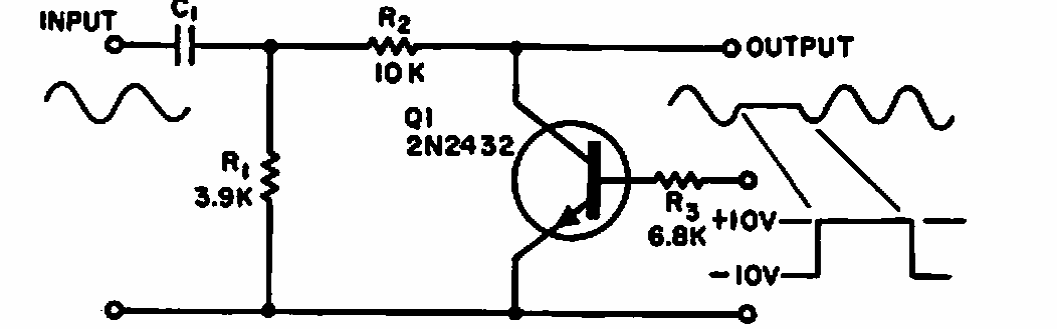

Video switch (CB6926E)

Found in a 1964 Electrronic Design, this circuit is intended to control analog video signals. The circuit has an attenuation of 45 dB at 20 kHz.

| Clique na imagem para ampliar |
