Fortune Wheel (CB7004E)

Details
Written by: Newton C. Braga

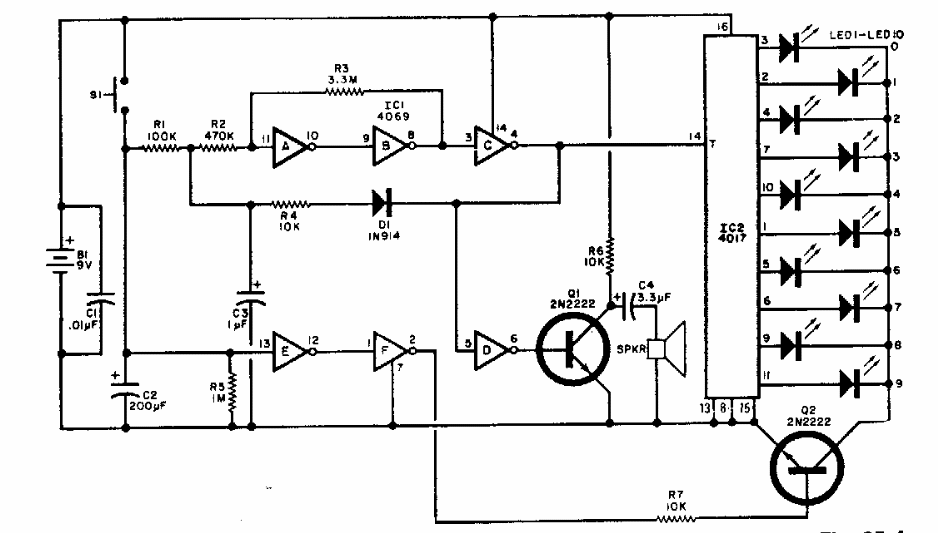

    Found in a Popular Elecronics from the 90s, this circuit appears in other versions in this section and on the website. The circuit draws one of 10 LEDs and has a sound effect produced during the draw.
