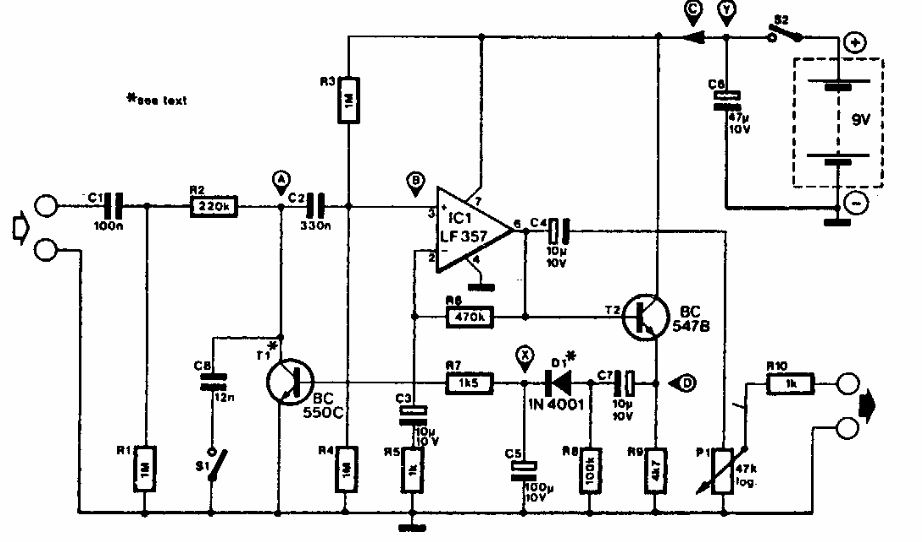

Found in the book 303 Circuits, this circuit compresses signals from 25 mV to 20 Vpp to intensities of 1.5 Vpp to 3.5 Vpp. The frequency range is from 7 Hz to 67 kHz.
| Clique na imagem para ampliar |
Audio compressor (CB7099E)
- Details
- Written by: Newton C. Braga
