Voltmeter with FET (CB7361E)

Details
Written by: Newton C. Braga

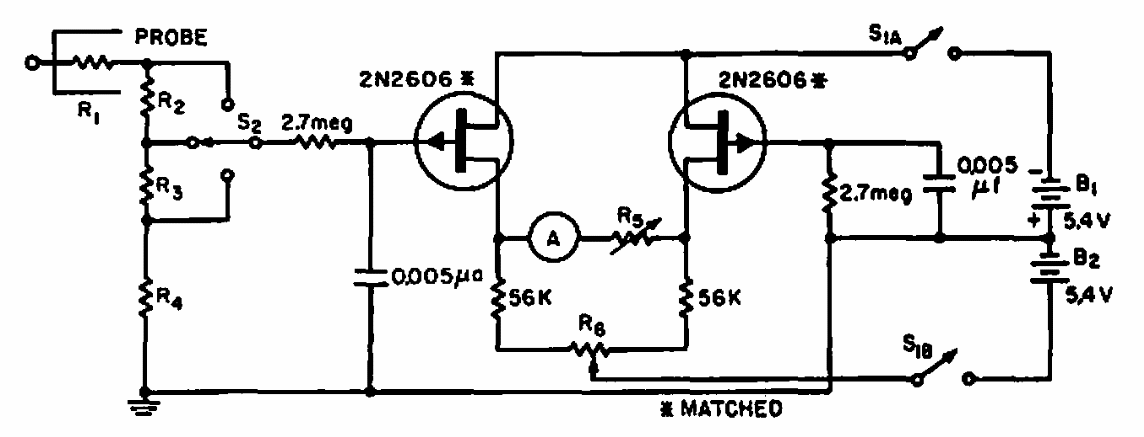

     Found in a 1964 Electronic Design, this circuit makes use of FETs of the time. These transistors can be replaced by modern general-purpose types. The input resistance is 30 M.






| Clique na imagem para ampliar |
