70 W Amplifier CIR13630S (CB6274E)

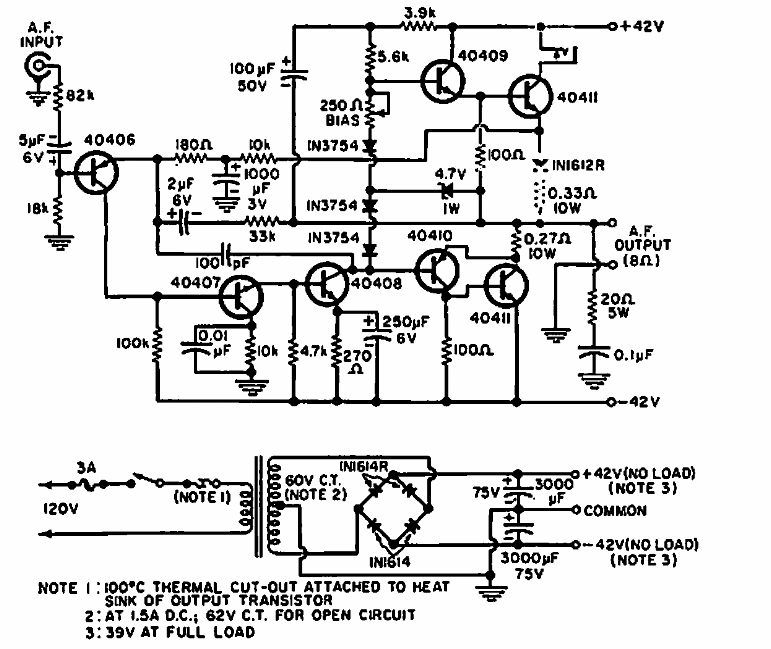

This circuit was found in an Electronics World of 1966. It has a range of 5 to 25 000 Hz at 1 dB and the diagram includes the power supply.
