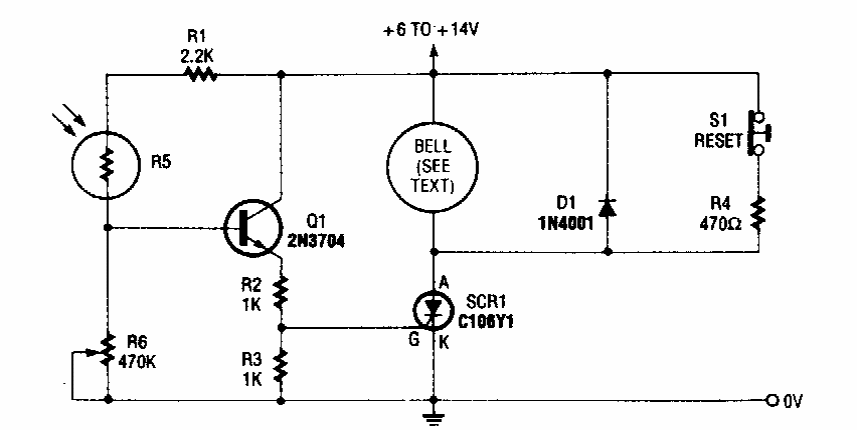

We found this circuit in an Electronics Now from the 1990s. The circuit crashes when light strikes the sensor. Instead of the alarm a relay can be used to drive higher power devices.
| Clique na imagem para ampliar |
Locked light alarm (CB6428E)
- Details
- Written by: Newton C. Braga
