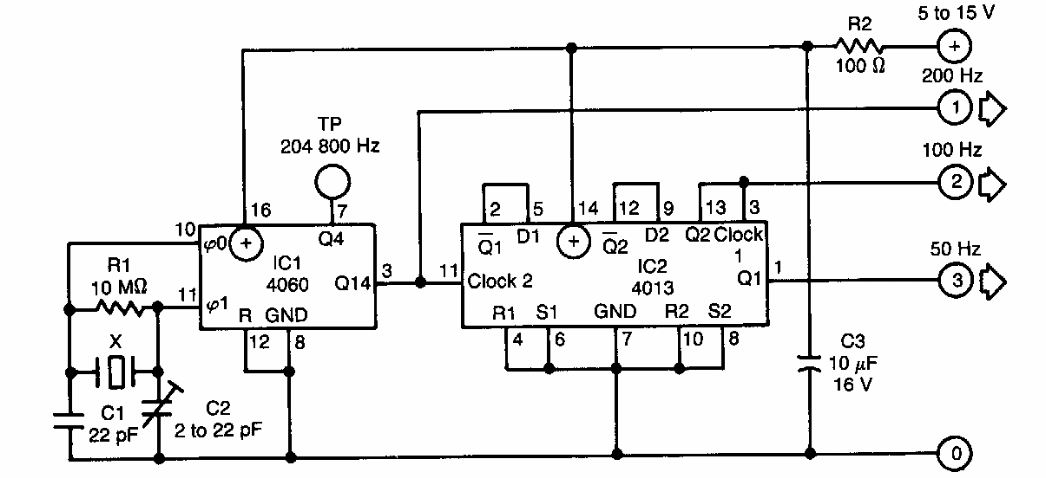

This timebase was found in a European 1980s documentation. The circuit uses well-known components and the crystal is of the type on 3.7768 MHz microcontrollers. The power supply can be between 5 and 15V.
| Clique na imagem para ampliar |
Crystal Timebase (CB6521E)
- Details
- Written by: Newton C. Braga
