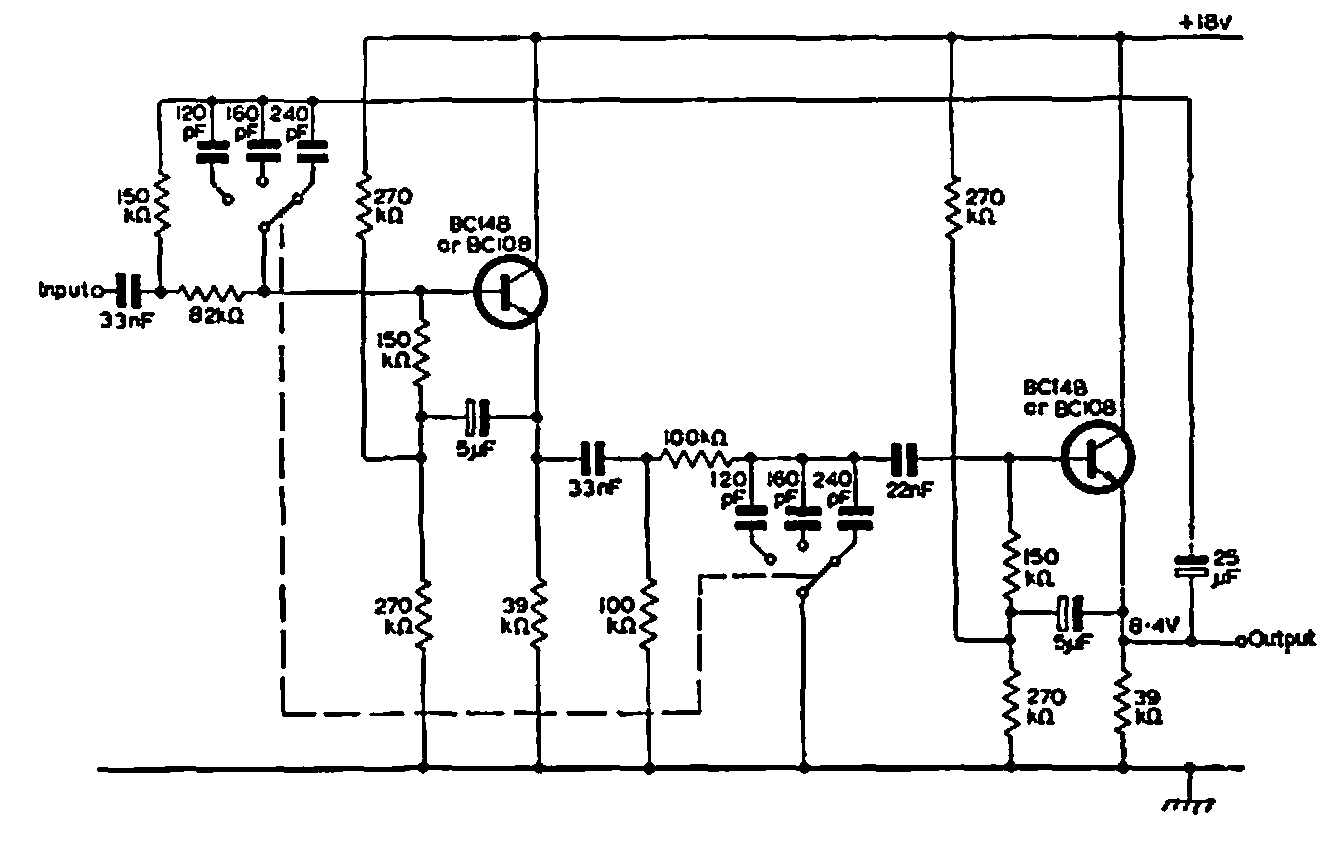

We found this circuit in a Philips documentation from 1969. It makes use of transistors of the time which has the BC548 as its current equivalent. The circuit has selection for frequencies of 16, 12 and 7 kHz.
| Clique na imagem para ampliar |
Noise and rumble filter (CB6716E)
- Details
- Written by: Newton C. Braga
