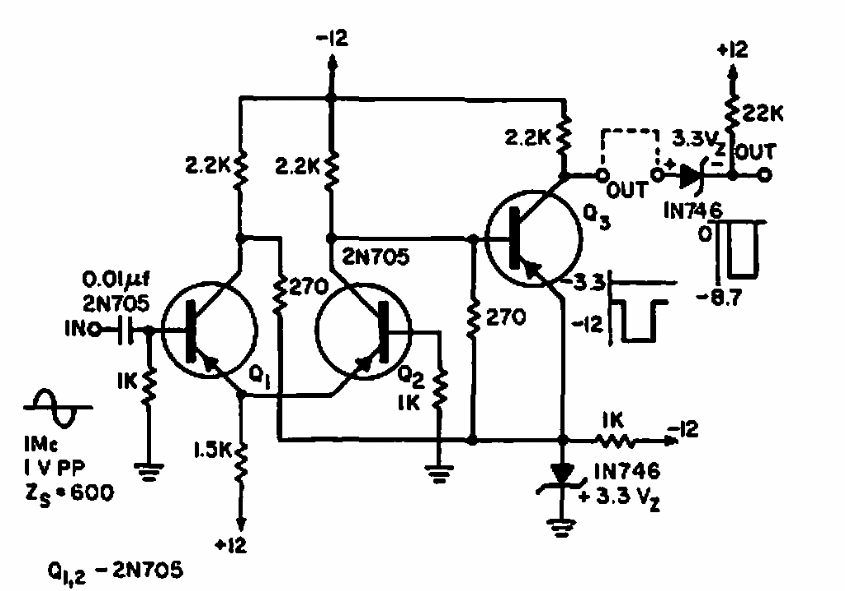

We found this circuit in a 1964 Electronic Design. Transistors can be modern general-purpose equivalents. The circuit converts a 1 MHz sinusoidal signal into a rectangular signal.
| Clique na imagem para ampliar |
Sine to square converter (CB7184E)
- Details
- Written by: Newton C. Braga
