This circuit was found in Motorola documentation from the 80's. The MOSFET admits equivalent according to the current and voltage of the motor that must be controlled.
| Clique na imagem para ampliar |

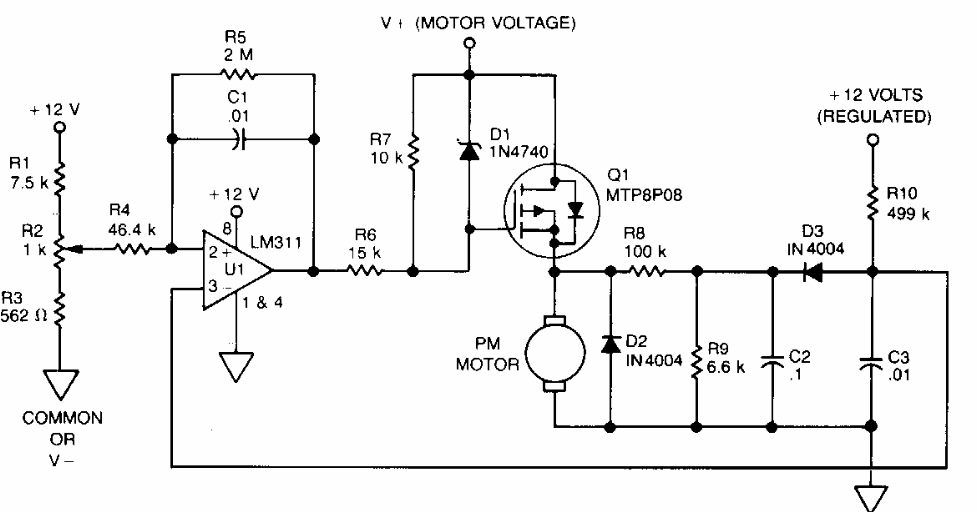

Speed control for PM motor (CB7295E)
- Details
- Written by: Newton C. Braga
