Code Switch (CB6535E)

Details
Written by: Newton C. Braga

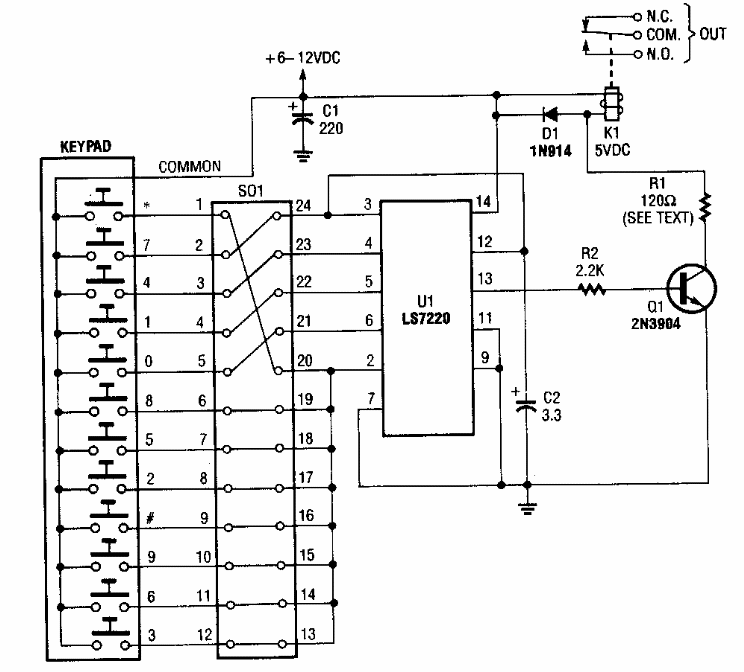

     Found on 80's Popular Electronics, this circuit uses an uncommon integrated today. Programming is done by a DIP switch.
