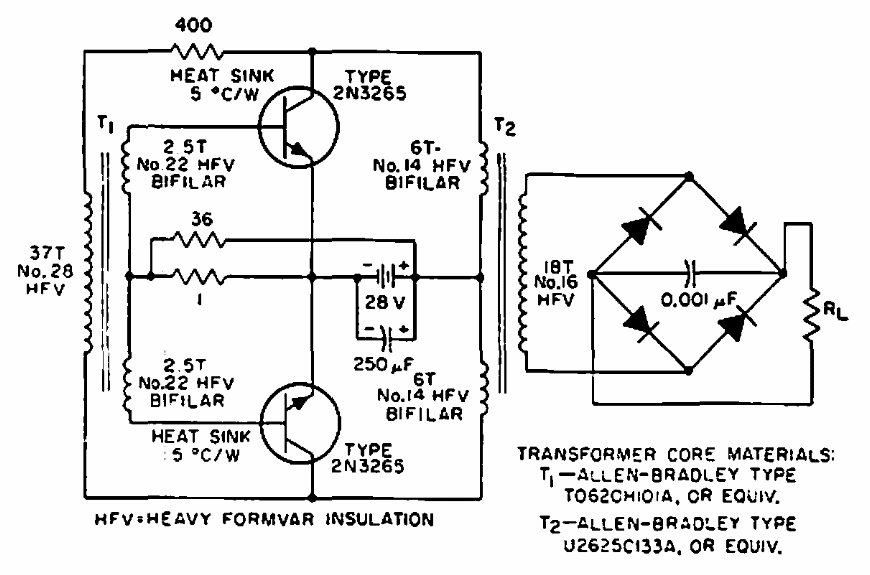

This 50 kHz to 250 W circuit was found in an old RCA documentation. The transformer is a commercial type of the time and the output voltage is 80 to 90 V.
| Clique na imagem para ampliar |
250 W Converter (CB6582E)
- Details
- Written by: Newton C. Braga
