Decimal Ring Counter (CB6617E)

Details
Written by: Newton C. Braga

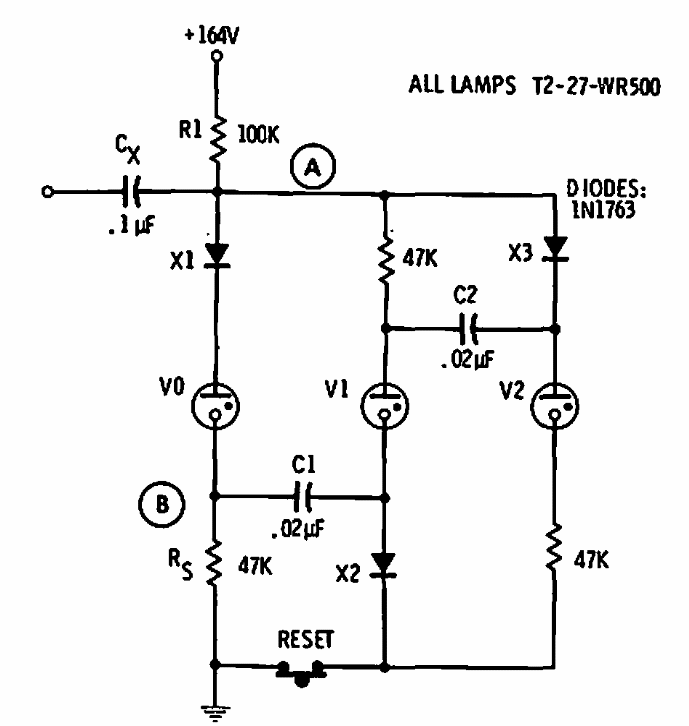

     Obtained from a 1969 documentation, this circuit can operate at frequencies up to 500 Hz, counting up to 999. The circuit makes use of neon lamps of the time.
