Voltage Range Detector (CB6672E)

Details
Written by: Newton C. Braga

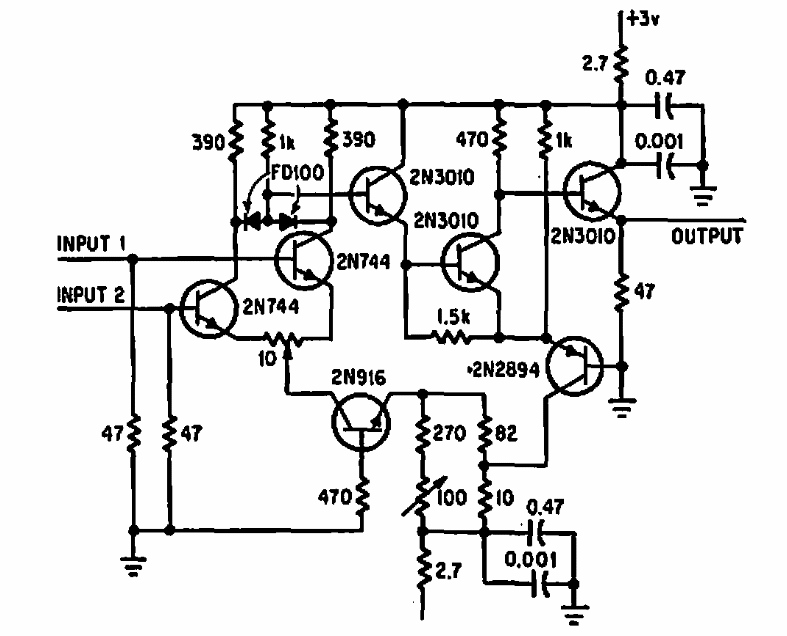

    This circuit was obtained from American documentation from 1966. It triggers when the two input voltages are within a pre-established range. The circuit can be mounted with modern transistors.




| Clique na imagem para ampliar |
