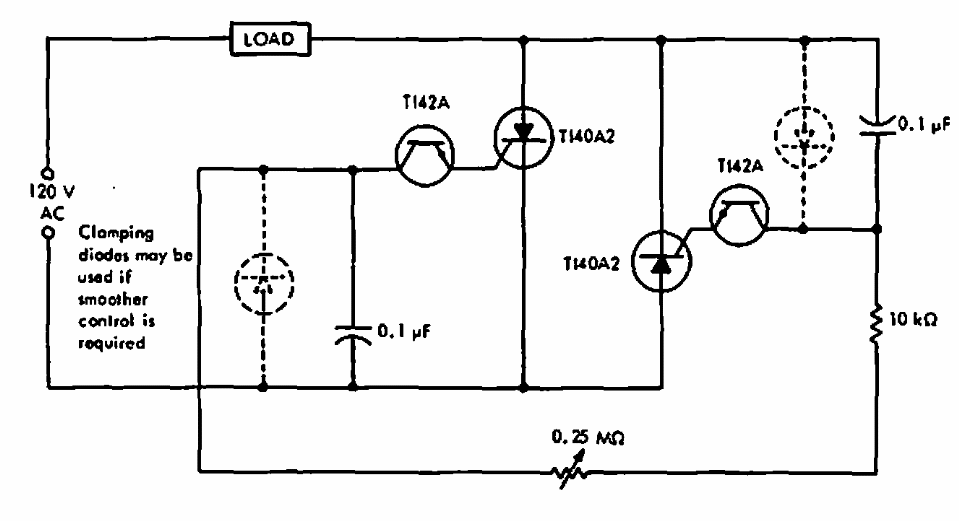

Full Wave Control (CB6554E)

This 1968 Texas Instruments circuit uses diacs of the era. SCRs can be modern equivalents according to the controlled load.
