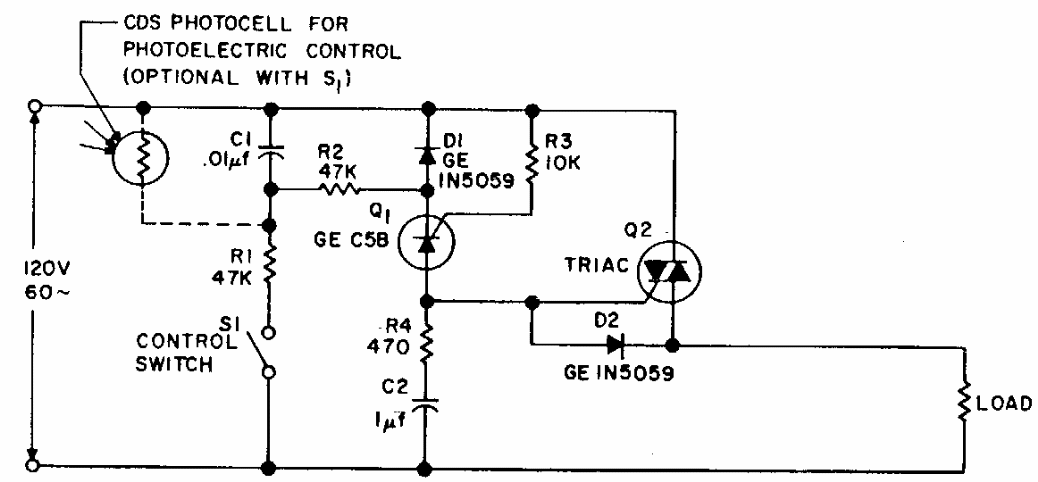

This switch can only be triggered when the mains voltage goes through zero and can operate as a sensor. The LDR is used for light activation. We found this circuit in General Electric documentation from the 90s.
| Clique na imagem para ampliar |
Synchronized photoelectric switch (CB6864E)
