High immunity logic function (CB6925E)

Details
Written by: Newton C. Braga

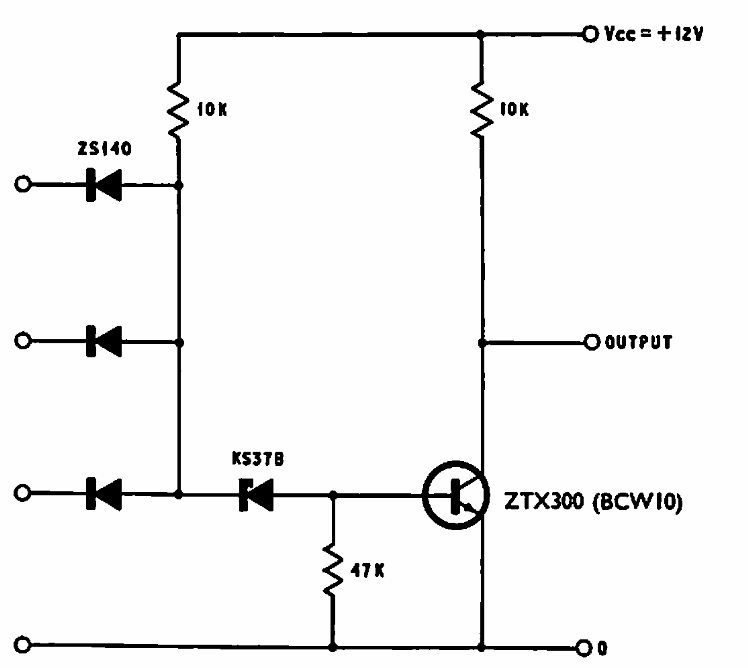

     Found in Ferranti's 1969 documentation, this circuit can be mounted with a modern equivalent transistor. The circuit has a 4 V immunity and can be used as a shield for sensors.




| Clique na imagem para ampliar |
