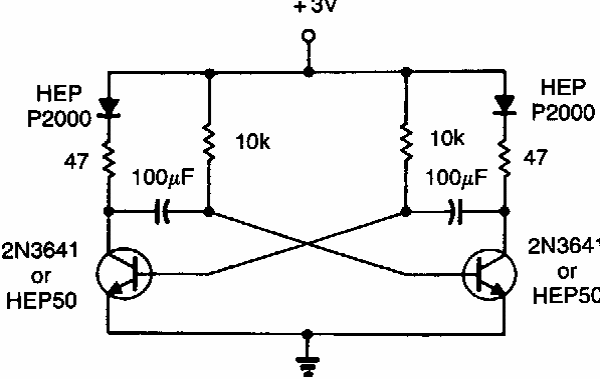

This one is from an 80's EDN. Transistors can be general purpose types. The frequency is determined by capacitors that can have values between 10 and 1000 uF. The power can be between 3 and 6 V.
LED Multivibrator (CB6946E)
