45 V inverter x 150 W (CB7147E)

Details
Written by: Newton C. Braga

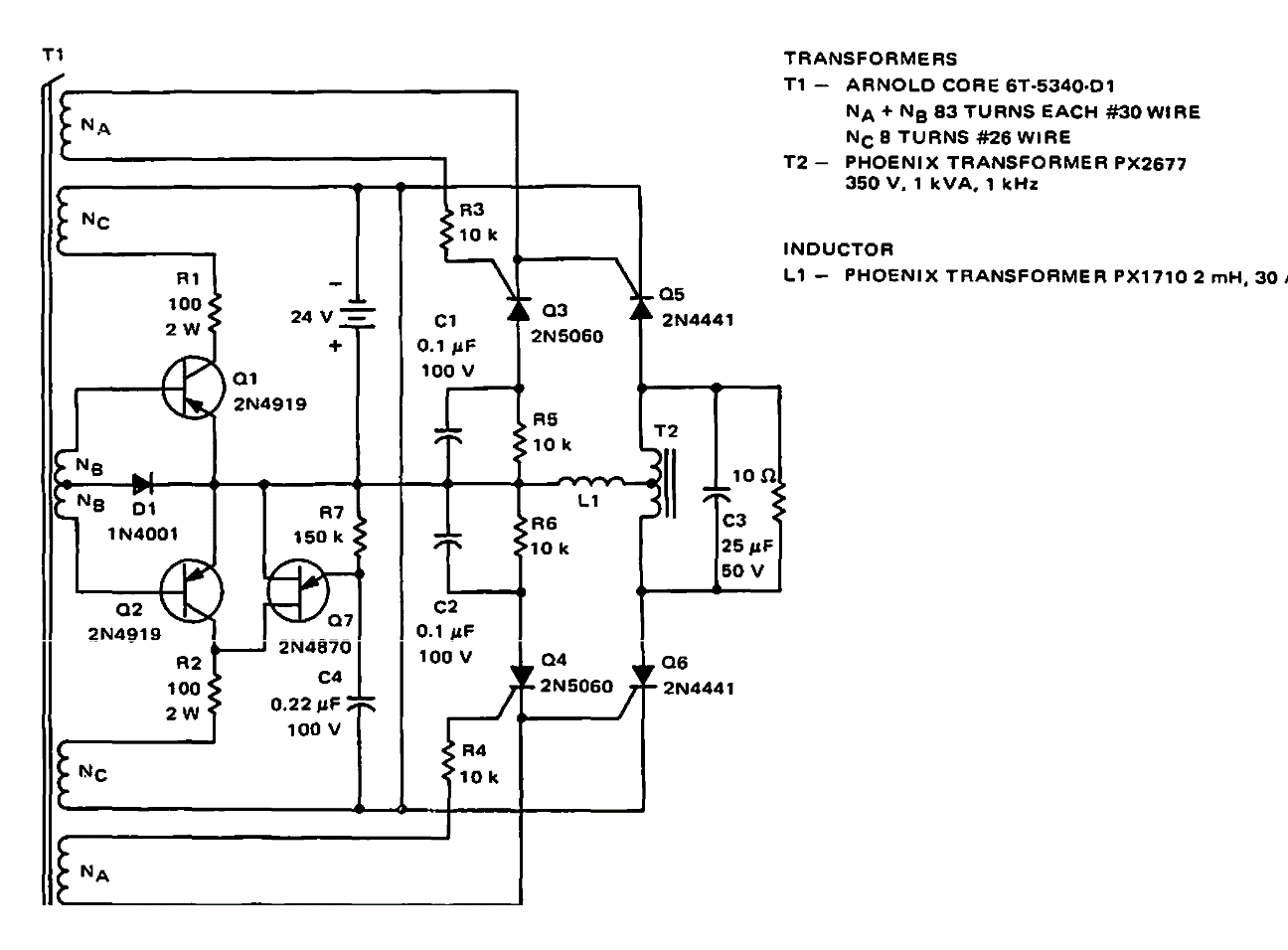

     Suggested by Motorola in 1968 documentation, this circuit has an efficiency of 70%. Power transistors are types of the time as are transformers.
