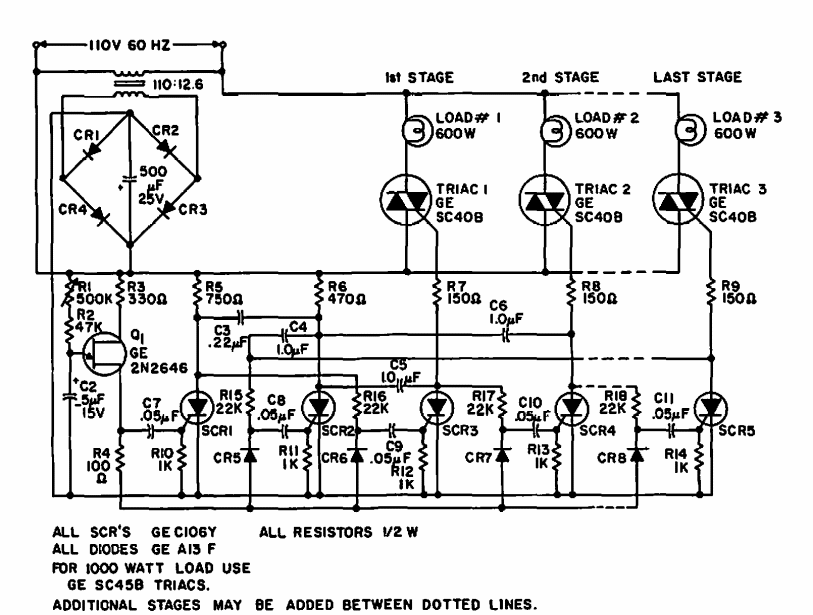

Sequential with triac (CB7200E)

Details
Written by: Newton C. Braga



     This sequential circuit appears in other versions on this site. This is from American documentation from the 1960s. The speed of the effect is set to R1.
