Two SCR dimmer (CB7206E)

Details
Written by: Newton C. Braga

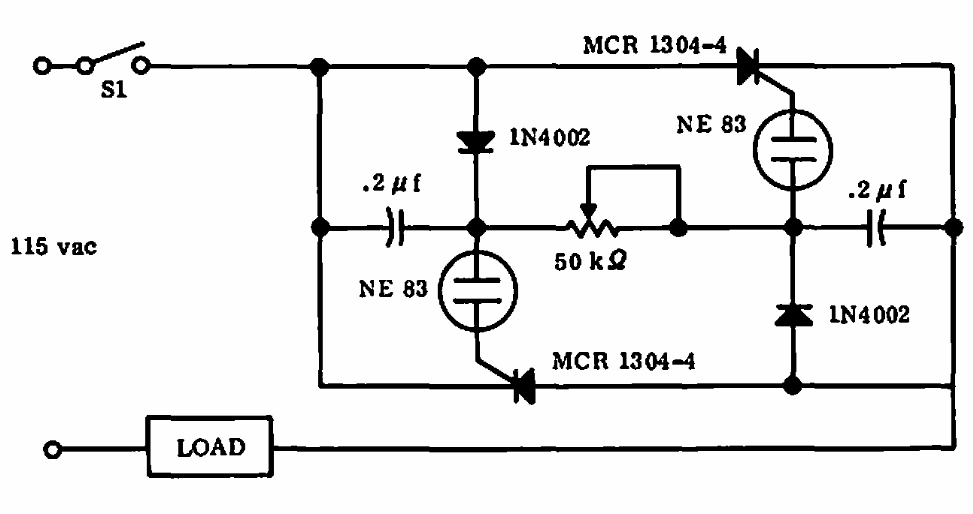

     This circuit was found in a Motorola Manual of 1965. The circuit has neon lamps as trigger elements. Equivalent SCRs can be used.
