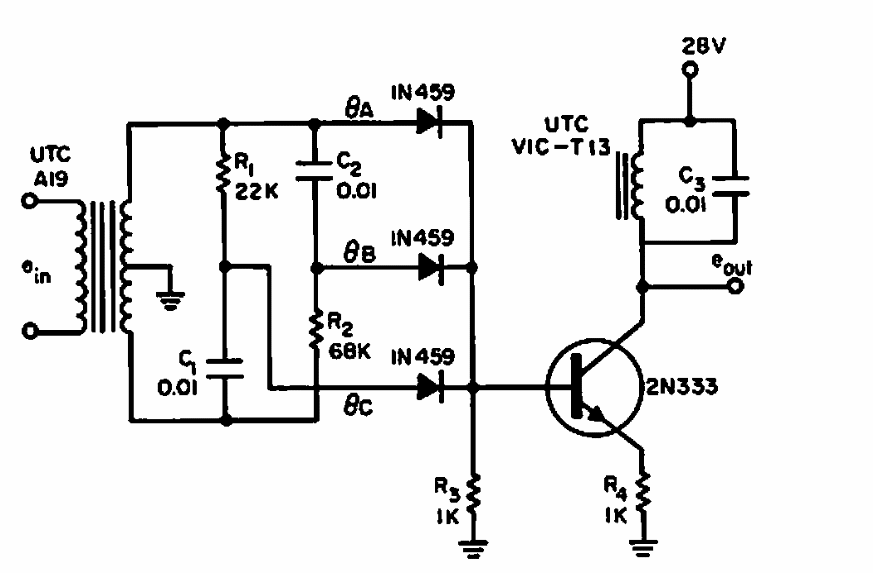

This circuit found in a 1965 Electronic Design multiplies the frequency of a 400 Hz signal sourcing at the output a 1200 Hz signal. The components can be changed so that the circuit operates at other frequencies.
| Clique na imagem para ampliar |
Audio Frequency Triplicator (CB6313E)
- Details
- Written by: Newton C. Braga
