Flip Flop with SCR (CB6534E)

Details
Written by: Newton C. Braga

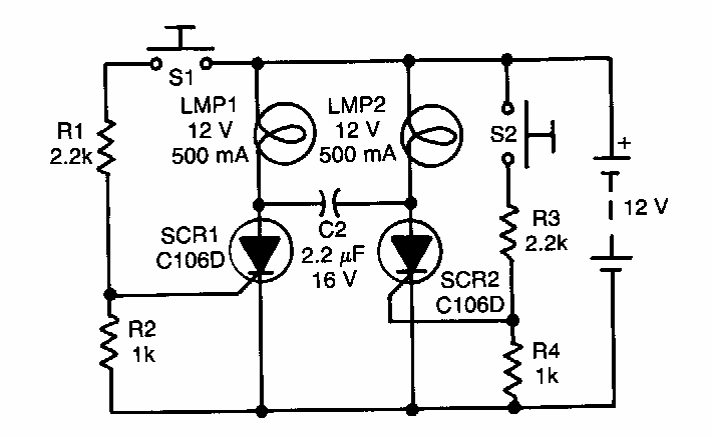

     Found on a Radio Electronics this 80's circuit uses two common SCRs driving lamps. This setting appears elsewhere in this site and this section.
