2-tube portable radio (T1160E)

Details
Written by: Newton C. Braga

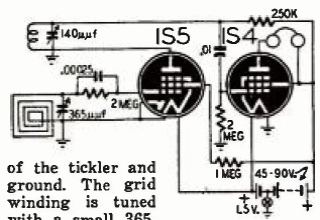

This receiver was found in a publication from 1947. The antenna is a loop and the listening is done with a high-impedance headphone. The receiver is regenerative with the feedback coil coupled to the loop antenna. The tuning range is medium wave.
