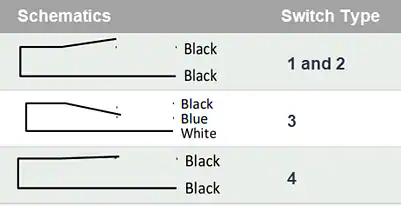

Littelfuse 59150 Flange-Mounting Reed Sensors offer simple installation and come in a compact package (28.57mm x 19.05mm x 6.35mm) with a choice of normally open, normally open high-voltage, normally closed, or changeover contacts. The housing case design enables screw or adhesive mounting and features wires exiting from the left-hand side for effective concealment in applications. These magnetically operated and hermetically sealed proximity sensors can switch up to 265VAC/300VDC at 10VA and operate through non-ferrous materials, such as wood, plastic, and aluminum. The 59150 series is also rated for high-temperature applications up to +105°C and for use in high-moisture and contaminated environments. Littelfuse 59150 Flange-Mounting Reed Sensors are IP67 rated and ideal for appliances, security and access control, and factory automation applications.
