Playback Amplifier (14W)

Details
Written by: Newton C. Braga

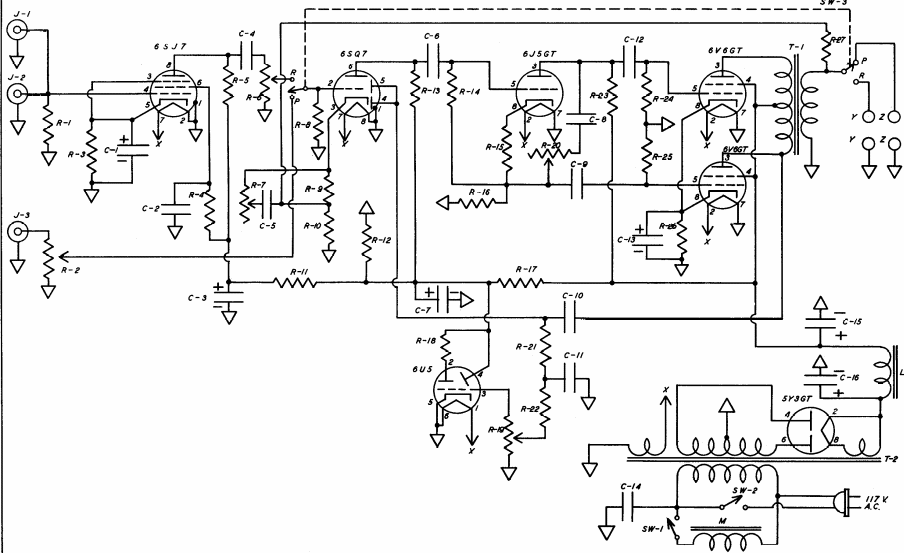

This 7-tube circuit was obtained from an American publication in 1947. The circuit has a push-pull output with a source using a transformer.










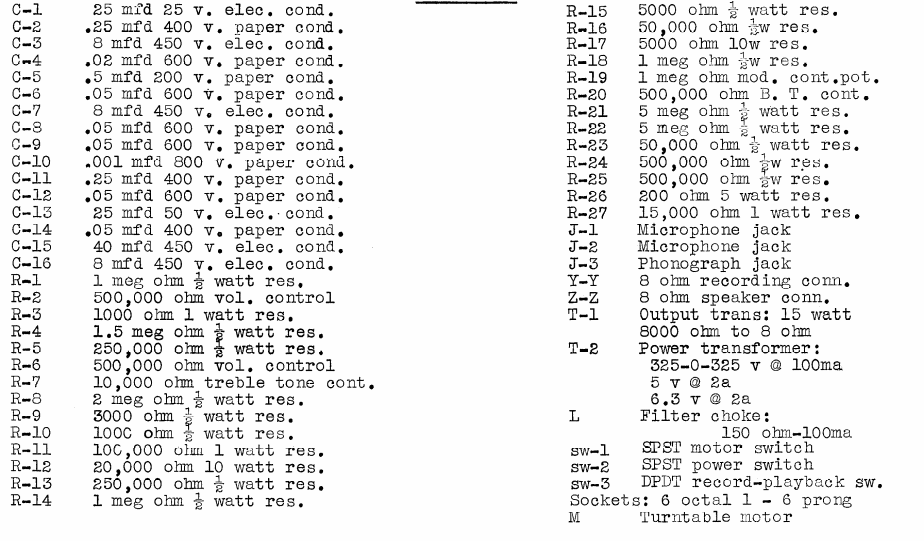

| Clique na imagem para ampliar |




| Clique na imagem para ampliar |
