Signal Generator (T1180E)

Details: Written by: Newton C. Braga

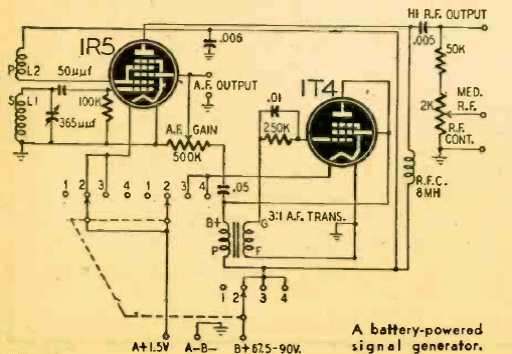

This battery powered signal generator was found on Radio Craft in August 1947. The circuit has two tubes, and the frequency range is determined by the coils.
