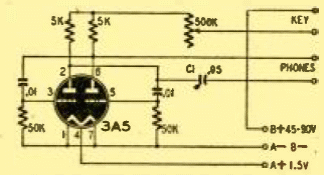

This simple oscillator for code practice works with low voltage. We found it on a Radio Craft from over 1948. The headphones must be high impedance. The potentiometer adjusts the frequency.
Oscillator for code (T1271E)
- Details
- Written by: Newton C. Braga
