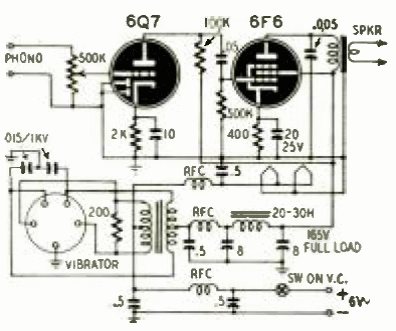

This small turntable amplifier is from a January 1947 Radio Craft. The circuit is powered with 6V using a vibrator to produce the high voltage for the tubes.
2-tube Amplifier (T1219E)
- Details
- Written by: Newton C. Braga
This small turntable amplifier is from a January 1947 Radio Craft. The circuit is powered with 6V using a vibrator to produce the high voltage for the tubes.
