5-tube 3W Amplifier (T478E)

Details
Written by: Newton C. Braga

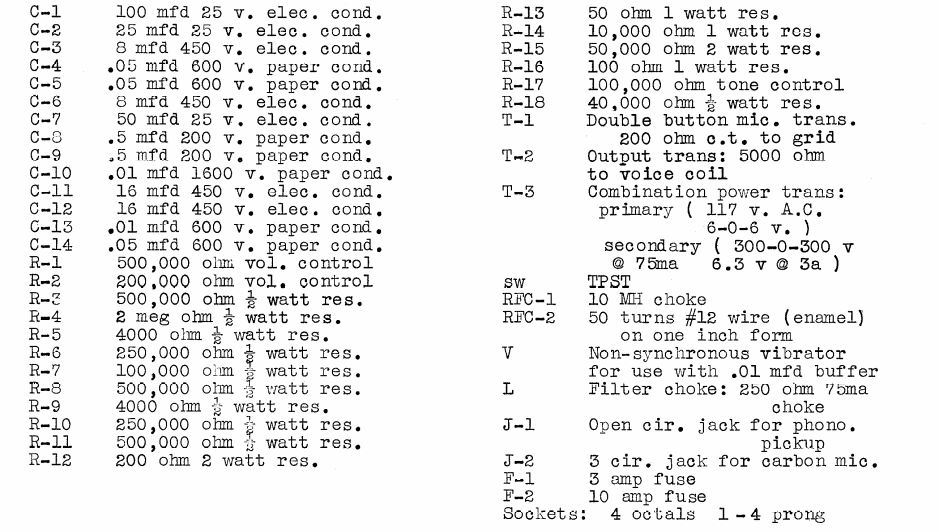

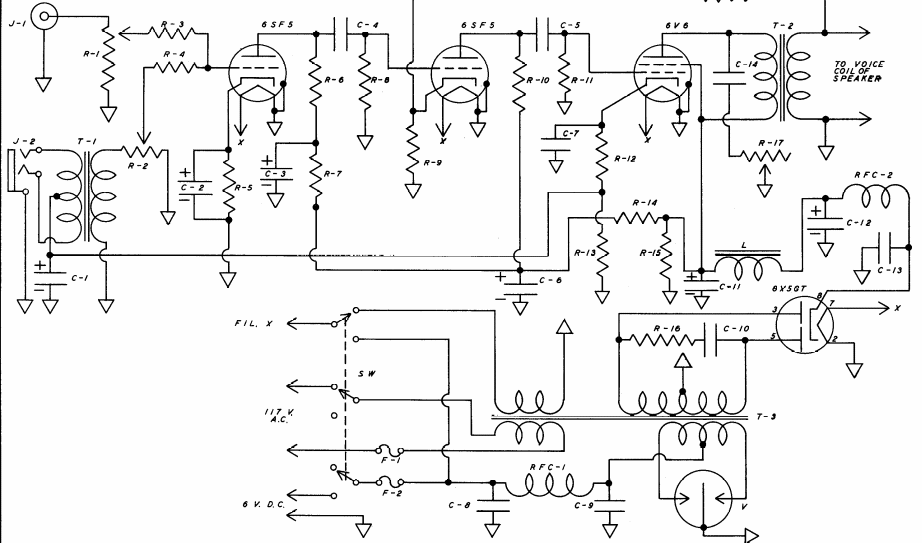

This circuit was obtained from a 1947 amplifier manual. The circuit makes use of a transformer source, but it can also be battery powered.










| Clique na imagem para ampliar |




| Clique na imagem para ampliar |
