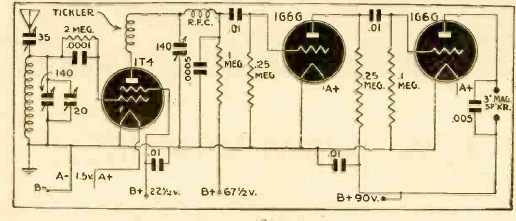

This 3-tube, battery-powered receiver was found in documentation from 1943. The output was either a high-impedance speaker or phone. The circuit received several tracks by switching or swapping coils.
Multi Range Portable Receiver (T712E)
- Details
- Written by: Newton C. Braga
