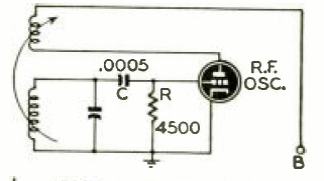

This is the typical configuration of a blocking oscillator using a triode tube. The circuit is from an old documentation., The frequency depends on the resonant circuit and the supply voltage depends on the tubes used.
Tube Blocking Oscillator (T1041E)
