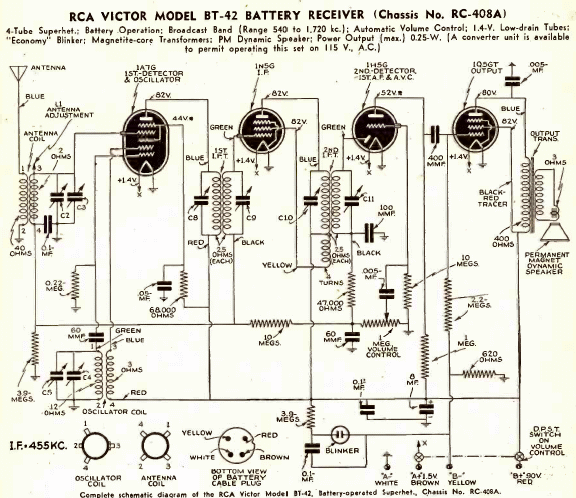

This diagram of a portable 4-tube receiver was found in a 1941 magazine. The portable medium-wave receiver had 4 tubes and an external antenna. Output was on loudspeaker and 455 kHz IF steps. The tubes had 1.5V filaments.
RCA radio model BT 42 (T739E)
