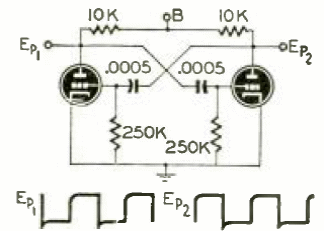

In the figure we have the conventional configuration of an astable with triode tubes. The frequency is given by the grid resistors and the capacitors. The supply is normally between 80 and 300 V depending on the tubes used.
