Hearing Aid Amplifier (T476E)

Details
Written by: Newton C. Braga



This battery-powered 3-valve circuit was found in American documentation from 1947; Two batteries are used, one high voltage and one low voltage for the filaments.

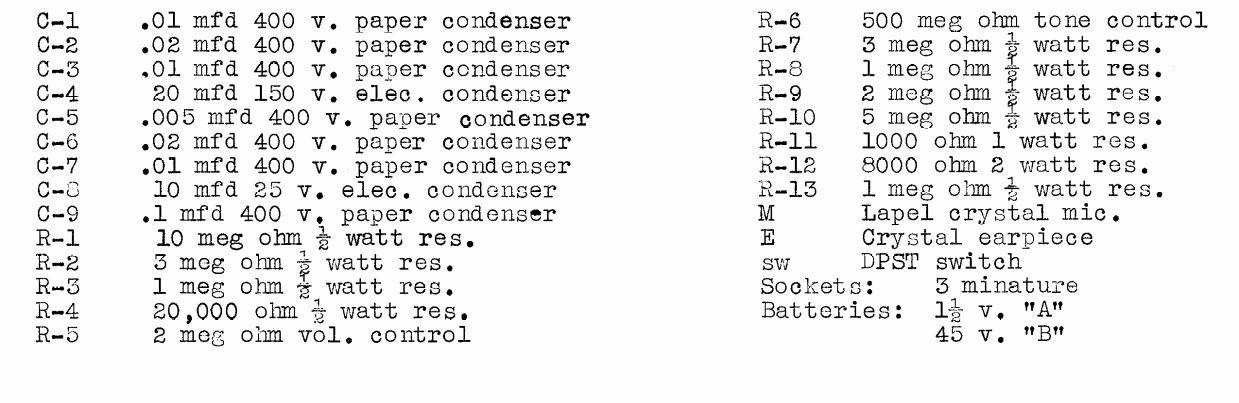

| Clique na imagem para ampliar |

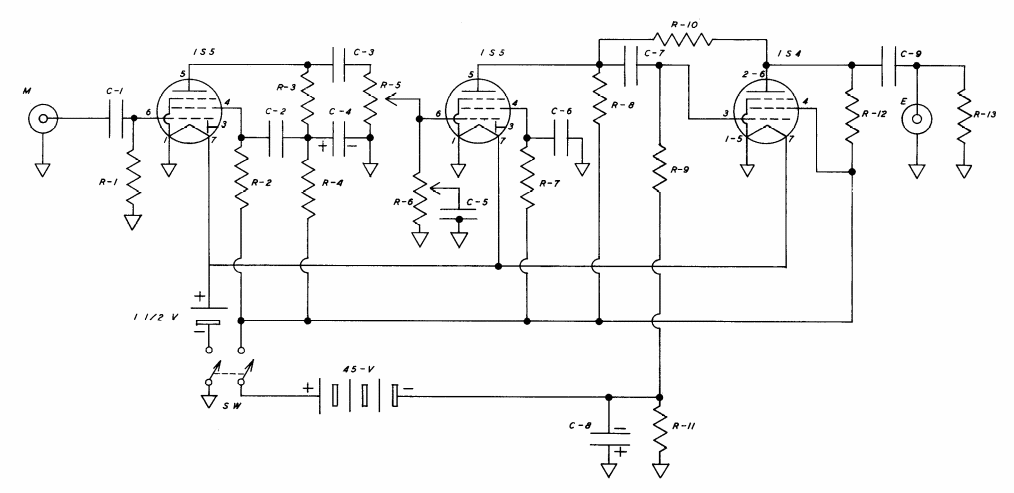

| Clique na imagem para ampliar |
