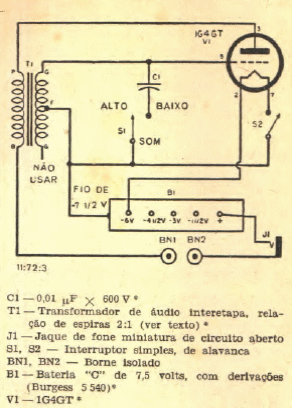

We found this circuit in Popular Electronics from June 1956. The circuit uses a single tube and a special transformer. The frequency is basically given by the capacitor and the characteristics of the transformer. Observe supply voltages.
Telegraphy Practice Oscillator (T510E)
- Details
- Written by: Newton C. Braga
