Signal Tracer (T792E)
- Details
- Written by: Newton C. Braga

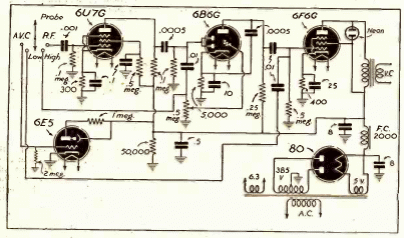

This 5-tube signal tracer circuit was found in documentation from 1942. The circuit has audio and RF inputs and a speaker output. Power is provided by a power supply with a transformer.
