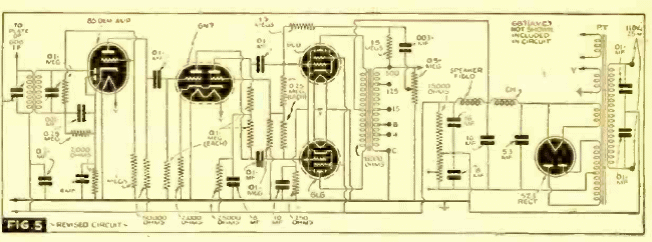

This circuit was found in a documentation from 1941. It uses a push-pull output with pentode tubes, which guarantees excellent power and sound quality. There are 5 tubes, giving an example of their use in ambient sound systems of the time from an FM tuner.
| Clique na imagem para ampliar |
