Gunshot Generator 76477 (CB24685E)

Details
Written by: Newton C. Braga

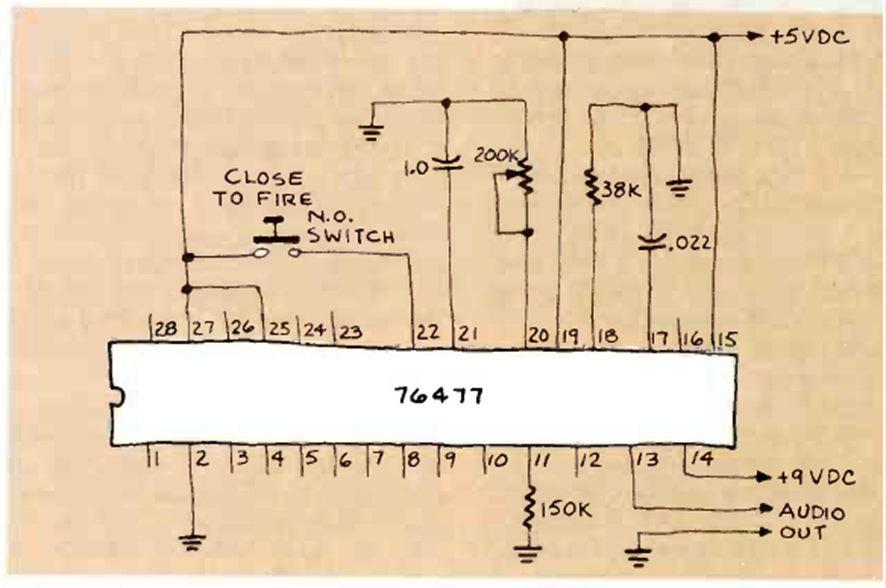

Using an integrated effects circuit, this circuit produces gunshot sound. The circuit must be powered by 5 V and the signal applied to a good audio amplifier.




| Clique na imagem para ampliar |
