Common Multimeter (T1081E)

Details
Written by: Newton C. Braga

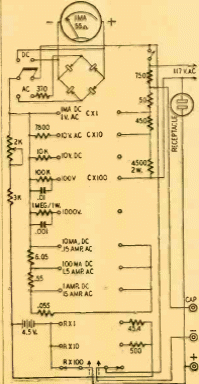

This circuit was found in a Radio Craft from October 1946. It can be assembled today with a scrap milliammeter, with only the difficulty of making the scales. A suggestion is given.
