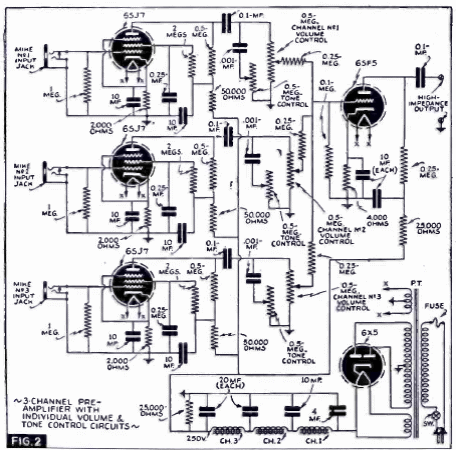

This mixer for surround sound or mixing board was found in a publication from 1940. 4 tubes are used for 3 inputs, but the number of inputs can be expanded. The circuit has a good source with a full wave rectifier and care with the shields must be redoubled in the case of an assembly.
