High fidelity amplifier (T506E)

Details
Written by: Newton C. Braga

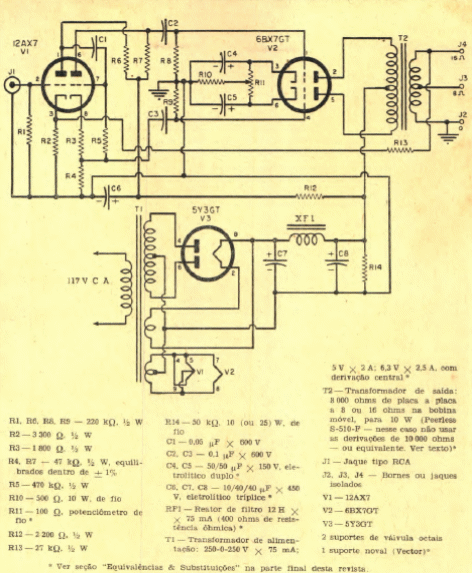

This amplifier was taken from a May 1956 Popular Electronics. It uses only 3 tubes with one output per double triode, providing a few watts of power. The critical components are the transformers.
