200kHz Receiver for Intercom (T939E)

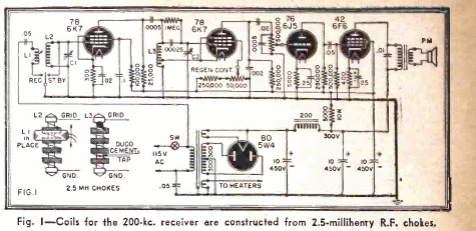

This 200 kHz receiver circuit for power line communication was found in documentation from 1945. The circuit uses 5 tubes and has excellent performance. Transmitters for this application can be found in this section and in the following circuit.
