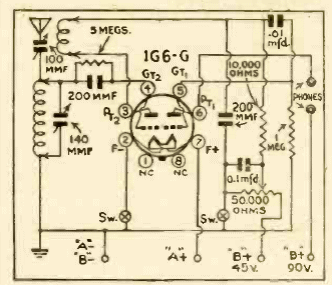

Found in a 1943 publication, this one-tube circuit receives wavebands according to the coil. Many clip-on coils can be made. The circuit uses high impedance headphones and requires a power supply with voltage as indicated.
1-tube Multi Range Receiver (T830E)
- Details
- Written by: Newton C. Braga
