1943 Guitar Amplifier (T731E)

Details
Written by: Newton C. Braga

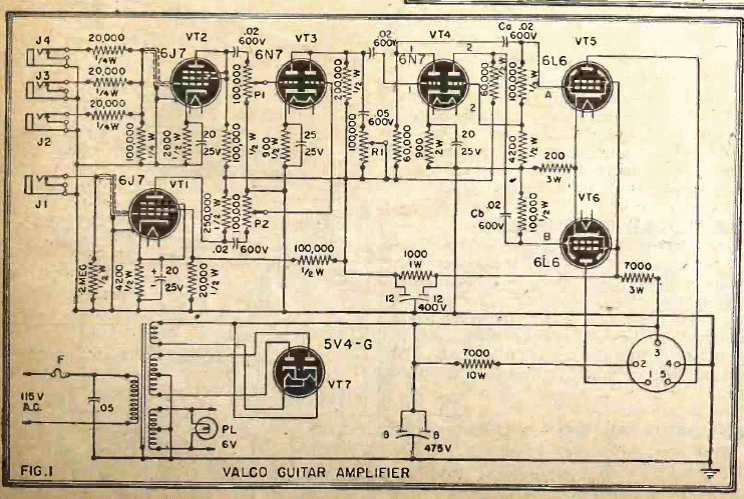

This guitar amplifier was found in a documentation from 1943. Its output is counterphase and, as we can see, there are connectors for remote speakers. The circuit is powered directly by a source connected to the power grid.




| Clique na imagem para ampliar |
