3-tube Receiver (T1005E)

Details
Written by: Newton C. Braga

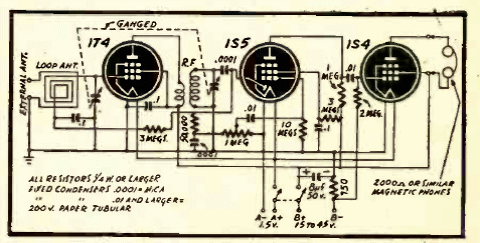

This receiver with a loop antenna was found in a document from 1945. The supply voltages are indicated, with the possibility of using a power source or batteries. The circuit has high impedance headphone listening.
