Compact Preamp (T907E)

Details
Written by: Newton C. Braga

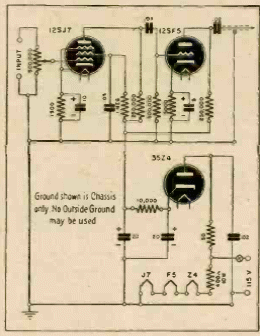

This transformerless source circuit is from a 1944 publication and should be used with care for isolation concerns. The circuit has only volume control.
