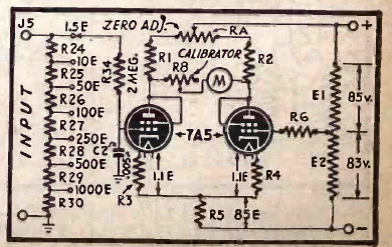

Named Omini Checker, this circuit from a Radio Craft from 1945 measures resistance, has an RF voltmeter, and even measures capacitances from 5 pF to 5000 uF. The circuit does not include the power supply.
Test everything (T957E)
- Details
- Written by: Newton C. Braga
