35W Modulator Amplifier (T488E)

Details
Written by: Newton C. Braga

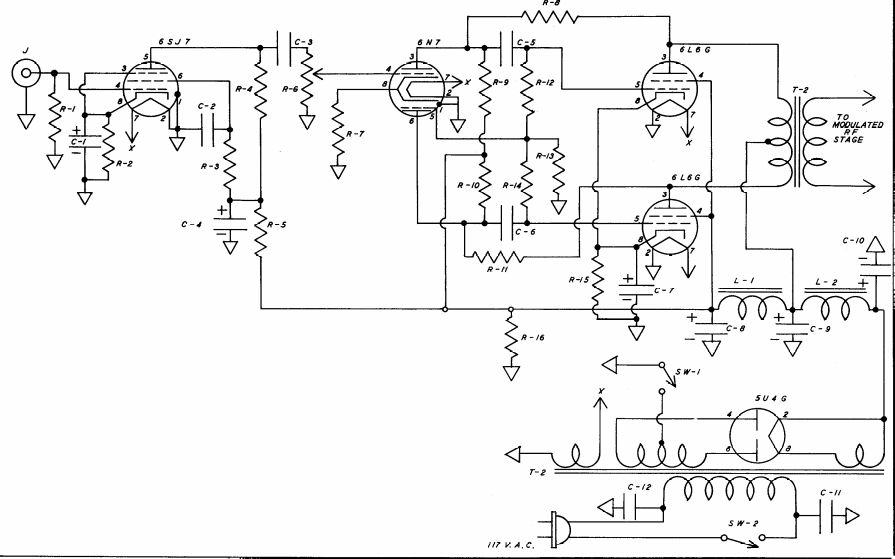

This is an amplifier circuit intended for modulating transmitters. The 5-tube circuit is from an American manual from 1947. The power supply uses a transformer.










| Clique na imagem para ampliar |




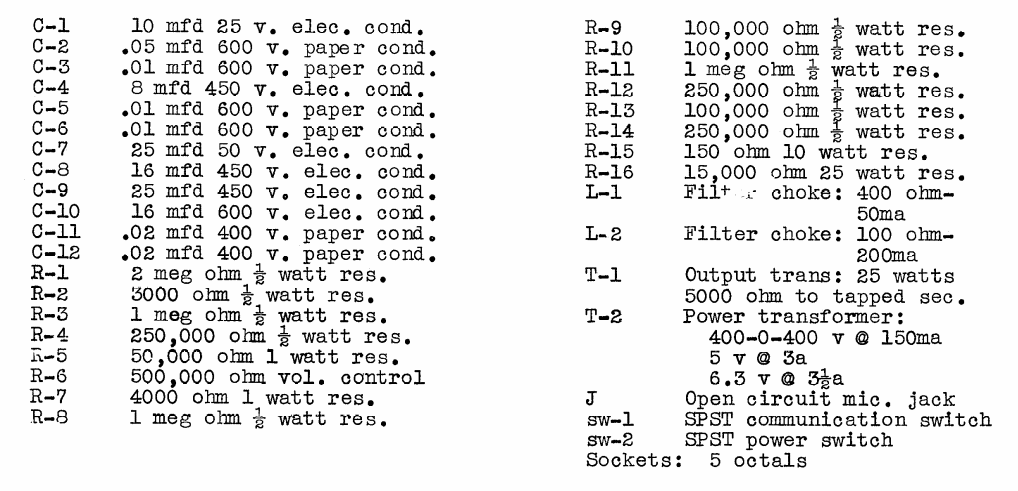

| Clique na imagem para ampliar |
