MW tuner (T932E)

Details
Written by: Newton C. Braga

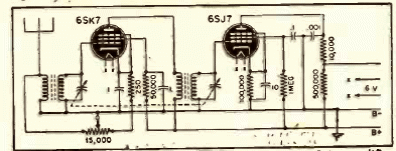

This circuit tunes to medium wave stations and can be used with any power amplifier. The circuit was found in a 1945 documentation. The source was not given.
